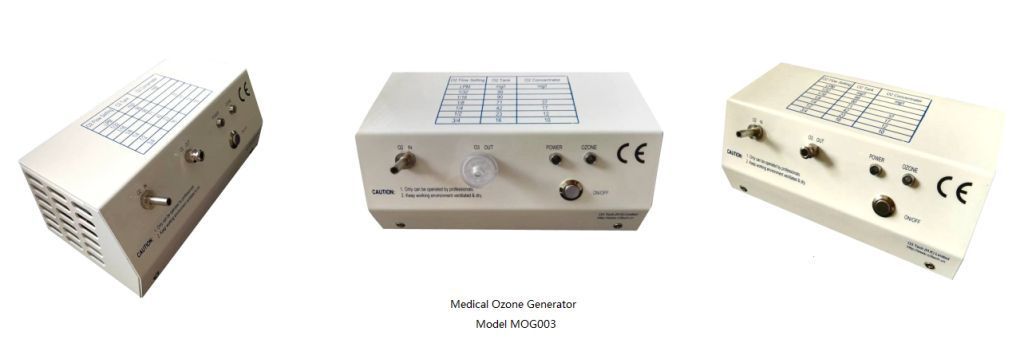

New Design of Medical Ozone Generator Model MOG003
Recently we have developed a new model of medical ozone generator model MOG003. In addition to good quality, it is well-designed and also has competitive price compared with other medical ozone generators in the market home and abroad.
Product features:
Product name: Ozone Generator |
Model: MOG003 |
Ozone concentration: 16-99mg/L ( via O2 tank) |
Ozone concentration: 10-37mg/L ( via O2 concentrator) |
Oxygem flow: 1/32-3/4LPM |
Output connections: Lure fitting; φ5 mm |
Cooling system: Air cooling, in-built a 15 CFM fan |
Corona discharge, Titanium tube |
Input voltage:12 V DC |
Power: 12W |
Operating temperature: -0 deg C ~ +40 deg C |
Storage temperature: -20 deg C ~ +70 deg C |
Size (L x W x H): 176 x 88 x 70 mm |
Weight: 1.5 Kg with stainless steel
Product description
Ozone Concentration & Ozone output Chart
O2 Flow Setting | O2 Tank | PSA O2 concentrator | Ozone output via O2 tank | Ozone output via PSA O2 concentrator |
LPM | mg/l | mg/l | mg/H | mg/H |
1/32 | 99 | |||
1/16 | 90 | |||
1/8 | 71 | 37 | 532.5 | 277.5 |
1/4 | 42 | 17 | 630 | 255 |
1/2 | 23 | 12 | 690 | 360 |
3/4 | 16 | 10 | 720 | 450 |
