Ozone Analyzer Operation Manual

O3tech 2011-12-25 15:30:19

Ozone Analyzer Operation Manual

Product Summary

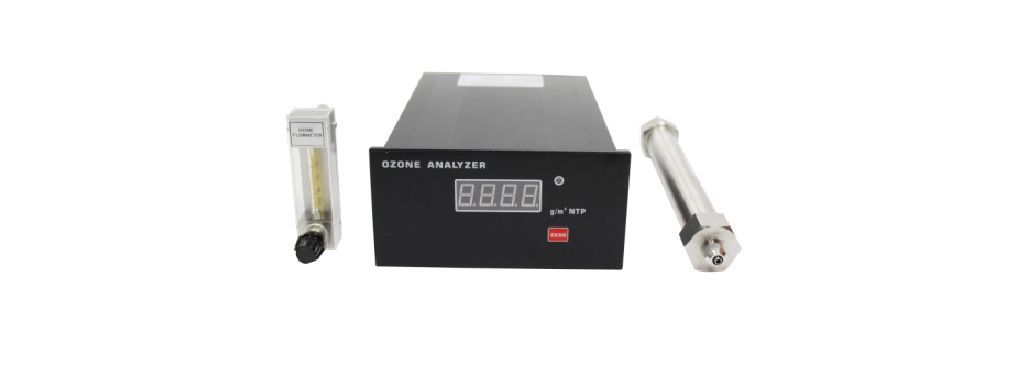

The Model UV-2000S designed by O3Tech (H.K.) Limited;  That can be continuous on-line to measure ozone concentration (0-200Mg/L) in the outlet pipe of ozone generator; it could be used on many applications; such as , pharmaceutical, chemical, municipal, sewage treatmen tand other industries scopes.

The model UV-2000S designed based on the Lambert - Beer lawto measure ozone concentration (MG/L) or ozone output (Grams/hour)out of the ozone generator outlet; (Lambert - Beer law: By measuring the intensity changes of the UV light signal beforeand after the ozone absorption);

Model UV-2000S adopt the advanced double beam UV light source system; It include the lamp intelligent management system can make the ultraviolet lamp tube reach the working environment in the short time. Which combine the separate style light pool technology in it.

Instrument will carry on zero calibrating and blowing every onehour, to ensure continous stability of the zero function, and working 24 hours per day with highefficiency;

Model UV-2000S has many features. Such as: No Ozone leakage,friendly to high pressure ozone gas, easy to clean, easy maintenance, simple operation, low running cost, and etc.

Technical Parameters

Measure range: 0-200 g/m3

Display resolution: 0.01 g/m3

Pump suction gas flow: 1.0L±0.2L/min

Input pressure: <0.1MPa

Zero drift: < 0.1%.FS (MAX±0.2 g/m3)

The sampling hole diameter: diameter of 6 (6mm*4mm)

Detection accuracy: ±3% readings

Communication mode: RS-485

Output mode: 4-20mA, linear

Power supply: AC 110-220V

Size: 155*78*240mm

Hole size: 145*68mm

Note: 1mg/L=1g/m3=467PPM

Net weight: 2KGS

Technical characteristics

Measuring principle:  Lambert's law and Bill's law

Test method: Double beam UVabsorption method

Light source: long-life UV lamp(wavelength 253.7nm)

Light pool: Separate style light pool

Intelligent compensation: Light source automatic compensation function

Automatic zero: Zero calibrationevery1

Data show: High-definition digital backlight display and easy to read

Function: 4-20mA output current signal; RS485 communication
