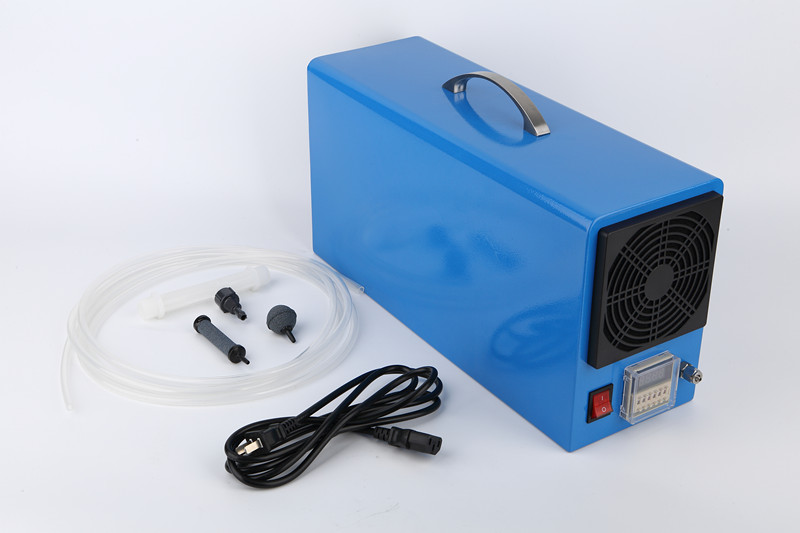

2G/H Ozone Generator Model:OTH-AP002

Ozone air purifier/Ozone generator for water treatment/ Aquarium Ozone generator/ Ozonated water;



 Product Feature

1. Portable ozone generator, easy to handle, suitable for different scenarios (home ,office, hotel room, etc.)

2. 304 S. Steel cabinet

3. With digital timer, can set the working time based on the requirements.

4. Beautiful design

Application scope

1. Apply on water purification

 Ozone Generator OTH-AP002 application

Ozone can be used on waste water treatment, agriculture water treatment, aquaculture water treatment, drinking water treatment, swimming pool water treatment, etc.

Ozone generator model OTH-AP002 mainly used on domestic drinking water purification, home aquarium water treatment, fruit & vegetable washing, etc.

Thereferenced ozone concentration use on water treatment

Category

Dual Water

Pure Water

Natural Water

Tap Water

Swimming Pool

Ozone dissolved in water

0.1-0.3mg/L

0.2-0.4mg/L

0.4-0.6mg/L

0.4mg/L

0.2mg/L

Ozone dosage (Gram/H)

1-2g/CBM

2-3g/CBM

3-5g/CBM

3-5g/CBM

1.0g/CBM



2. Apply on air purification

                 Ozone Generator OTH-AP002 application

Ozone can be used on different kind of air treatment scenarios for air sterilization, air purification, air deodorizing,   etc.

Ozone generator model OTH-AP002 mainly used on home air purification, hospital air sterilization, hotel room odor removal, household fruit & vegetable fresh keeping, etc.

The referenced ozone concentration used on air purification

Application

Category

Concentration(PPM)

Ozone output required per hour(mg/H)

Usage Method

Sterilization

   Medical apparatus Disinfection

20

50-100

Working time: 60minute at 20PPM

Sickroom, operation room

2.5-5

5.5-15Booting ozone gas if necessary. According to the standard to check the total number of bacteria

Clothing disinfection

10-20

25-50

The relative humidity of 90% or so, clothes hangers

Air

purification and  fresh keeping

Egg

2-2.5

5-5.5

booting 2-3 times a day

Banana

2.5-3.5

5.5-8

Chlorophyll less vegetables

1.5-1

3.5-2.5

Fish, cheese

0.5-1

1.5-2.5



Product  Specifications

1. Product name: Ozone Generator

2. Model: OTH-AP002

3. Ozone gas output: 2000 Mg/H

4. Feeding raw material: Air

5. Air flow: 8 LPM

6. Ozone module type: Ceramic tube type

7. Ozone module quantity: 2 PCS

8. Ozone outlet: 5*8mm

9. Air pump inbuilt

10. Voltage: 110V or 220V/50Hz

11. Power consumption: 65W

12. On/Off Switch

13. Handle With Timer

14. Net weight: 6.5KGS

15. Unit size: 150*250*460*mm

16. Gross weight: 7.5KGS

17. Free spare part: Venturi 3/4 1pc; Teflon hose: 5 meters; Air bubble stone

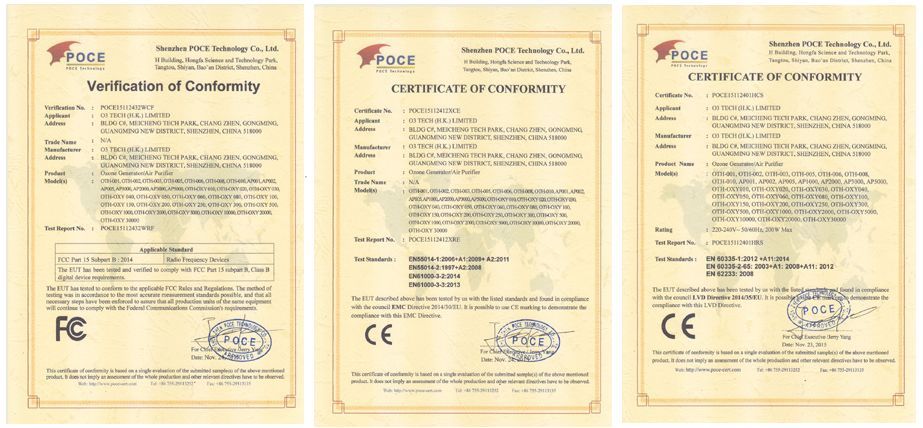

Certificate:
