Product Feature:

1.   Container type ozone generator covers an area of small, does not require on-site installation can be quickly put into use, especially in outdoor emergency treatment;

2.   Modular Ozone cell (plate type)

3.   Higher Ozone concentration (100-200MG/L)

4.   PLC control system with the simple and safe operation;

5.   Lower power consumption (7KWH/KGS Ozone);

---The ozone generator adopts a special and advanced power supply system; So, theoperating voltage, frequency and the discharge chamber should be better. The power factor can reach more than 0.98;

6.   The ozone output or ozone concentration don’t decrease after long time working.

7.   Compact style.

--- Adopt the high processing precision of the ozone discharge chamber and the modular structure;Smaller product dimensionto save the occupation area when installation.

Application Scope:

1.   Flue Gas Treatment

OTH-OXY3500 can be used for the treatment of flue gas denitrification in petrochemical industry；inject the proper amount of ozone in the flue gas to low valence oxides of nitrogen is oxidized to high valence oxides of nitrogen; oxidation products can be dissolved in water, so as to achieve the purpose of flue gas denitrification;

2.   sewage Treatment

Ozone is one strong oxidation agent, which can be used in many fields of sewage treatment plant. Such as degrade COD (chemical oxygen demand) or BOD (Biochemical Oxygen Demand);

It  can also be used on the sewage water decolorization.

3.   Emergency Treatment Of River Pollution

When the river is polluted, container type ozone generator OTH-OXY3500 can be used for emergency treatment. Inject the proper amount ozone, the pollutant can be degraded; So it can avoid the expansion of the river pollution.

4.   Odor Treatment

In some industrial fields, such as incineration plants or sludge drying plants will producea lot of odor.To use high-powered fan to suck and collect the odor in one tank and inject the ozone in it .

The odor will be decomposed by ozone and then discharged through the chimney.

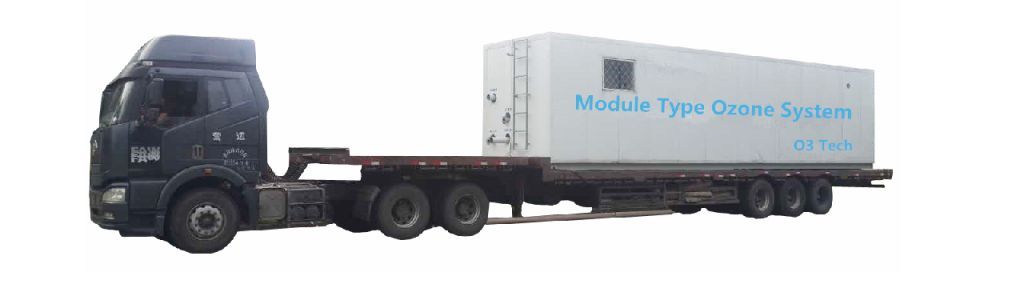

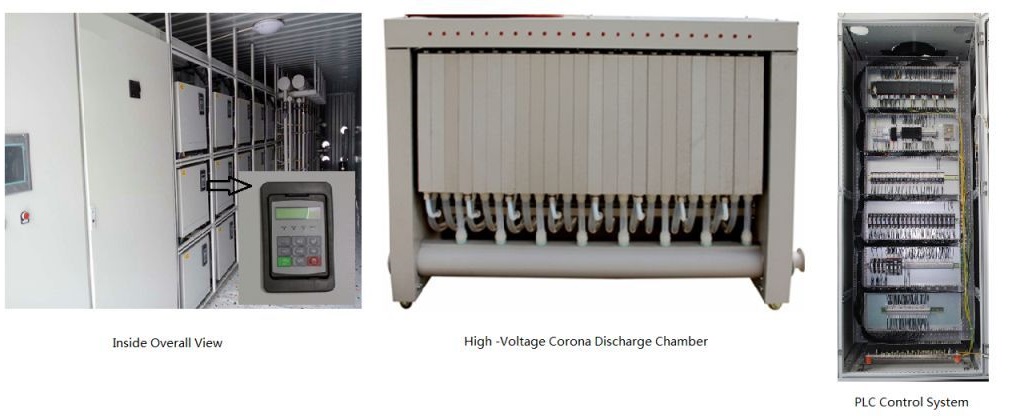

Product view and structure

ControlSystem

The control system adopts SIEMENS PLC& touch screen, and low voltage electrical system made by Schneider Inc.The field signals program into the control system through both isolation and anti- interference.The temperature, pressure and flow signals are collected and displayed on line.

The control system will alarm or stop when the abnormal situation occurs.Therefore, this system has high degree of automation, and the operation should be convenient, safe and reliable.

1.   PLC model:SIEMENS SIMATIC S7-200 SMART

2.   Touch screen model: KINCO MT4434TE

3.   Intelligent three-phase integrated electric parameter monitor model:HB3300

4.    Emergency stop button

5.   Start button

6.   Reset button

Specifications

1.   Product name: Ozone Generator

2.   Model: OTH-OXY3500;

3.   Ozone output: 35KG O3/H,0-100% adjustable

4.   Ozone concentration: 100MG ~ 150MG/L

5.   Gas source: Oxygen concentrator(VPSA or Liquid oxygen)

6.   Oxygen concentration: >90%

7.   Oxygen flow: 280Nm³/H

8.   Oxygen dew point: ≤-60℃

9.   Oxygen pressure: 0.1 MPa

10. Cooling solution: Watercooling

11. Cooling water method: Tap Water or Circulating Water

12. Cooling water flow: 88M³/H

13. Cooling water temperature: 10～30℃

14. Input voltage: AC380V

15. Input power frequency: 50 Hz

16. Power consumption: 260 KW

17. Equipment dimension: 12200 x 2500 x 2900mm

18. Equipment weight: 14000 KGS (Non-including PSA oxygen concentrator)
