30G/H Ozone Generator Model:OTH-OXY030

ozone air purifier/ozone generator for water treatment/aquarium/ozone generator/ ozonated water/ozonated olive oil

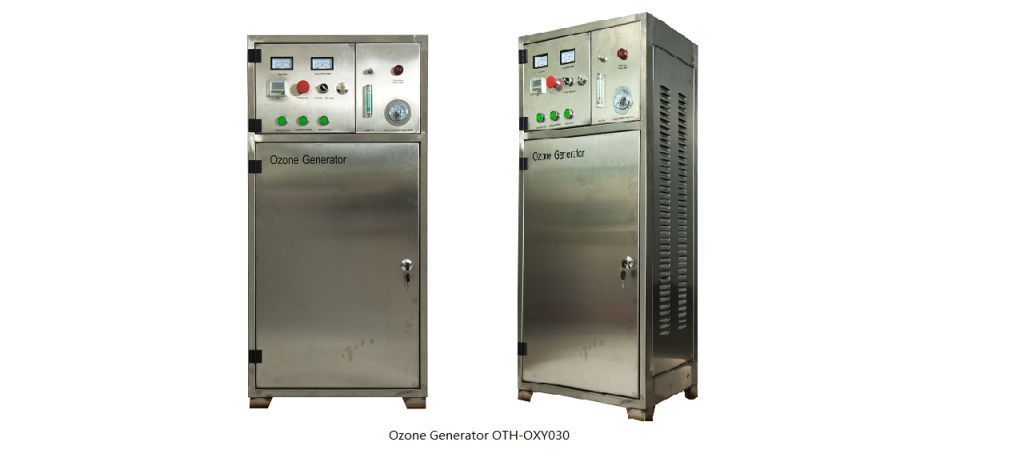

OZONE GENERATOR OTH-OXY030


 Product Feature

1. Compact style; Inbuilt Ozone cell, power supply and PSA oxygen concentrator

2. High ozone concentration 100-145MG/L

3. Both air & water cooling style

4. Safety operation control system combined


Application scope

1. Apply on water purification

OZONE GENERATOR OTH-OXY030 water

Ozone can be used on waste water treatment, agriculture water treatment, aquaculture water treatment, drinking water treatment, swimming pool water treatment, etc.

Ozone generator model OTH-OXY030 mainly used on different kind of industry water treatment (including dual Water,pure water,natural water, swimming pool water, etc.).

The referenced ozone concentration use on water treatment

Category

Dual Water

Pure Water

Natural Water

Tap Water

Swimming Pool

Ozone dissolved in water

0.1-0.3mg/L

0.2-0.4mg/L

0.4-0.6mg/L

0.4mg/L

0.2mg/L

Ozone dosage

1-2g/T

2-3g/T

3-5g/T

3-5g/T

1-2g/T




2. Apply on air purification

OZONE GENERATOR OTH-OXY030 application

Ozone can be used on different kind of air treatment scenarios for air sterilization, air purification, air deodorizing, gas defense and retain freshness, etc.

Ozone generator model OTH-OXY030 mainly used on industry food processing sterilization, industry plant air purification,Garbage disposal deodorizing, fruit & vegetable freshness keeping, etc.

The referenced ozone concentration use on air treatment

Application

Category

Concentration(PPM)

Ozone output required per hour(mg/H)

Usage Method

Sterilization

   Medical apparatus Disinfection

20

50-100

Working time: 60minute at 20PPM

Sickroom, operation room

2.5-5

5.5-15Booting ozone gas if necessary. According to the standard to check the total number of bacteria

Clothing disinfection

10-20

25-50

The relative humidity of 90% or so, clothes hangers

Gas

defense and retain freshness

Egg

2-2.5

5-5.5

booting 2-3 times a day

Banana

2.5-3.5

5.5-8

Chlorophyll less vegetables

1.5-1

3.5-2.5

Fish, cheese

0.5-1

1.5-2.5


 Product Specifications

1. Product name: Ozone Generator

2. Model: OTH-OXY030

3. Ozone output: 30Grams/H; 0-100% adjustable

4. Ozone concentration: 100MG ~ 140MG/L

5. Gas source: PSA Oxygen concentrator

6. Oxygen concentration: >90%

7. Oxygen flow: 0-5 LPM

9. Cooling solution: Both air & Water cooling

10. Cooling water temperature: <30℃

11. Cooling water flow: 5~10L/m

12. Cooling water pressure: <3 bars

13. Ozone module quantity: 1 PCS

14. Material of Cabinet: 304 S. Steel

15. S. Steel cabinet thickness: 1.2MM

16. Net weight: 105KGS

17. Gross weight:  118KGS

18. Units Dimension: 560mm(L)x 450mm(W)×1180(H)mm

19. Packages dimension: 710(L) x 585(W) ×1330(H)

20. Power consumption: 800W

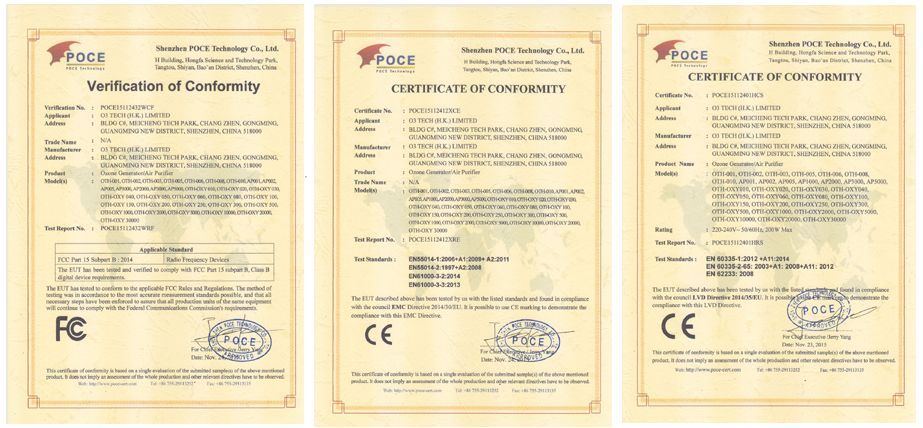

Certificate:
