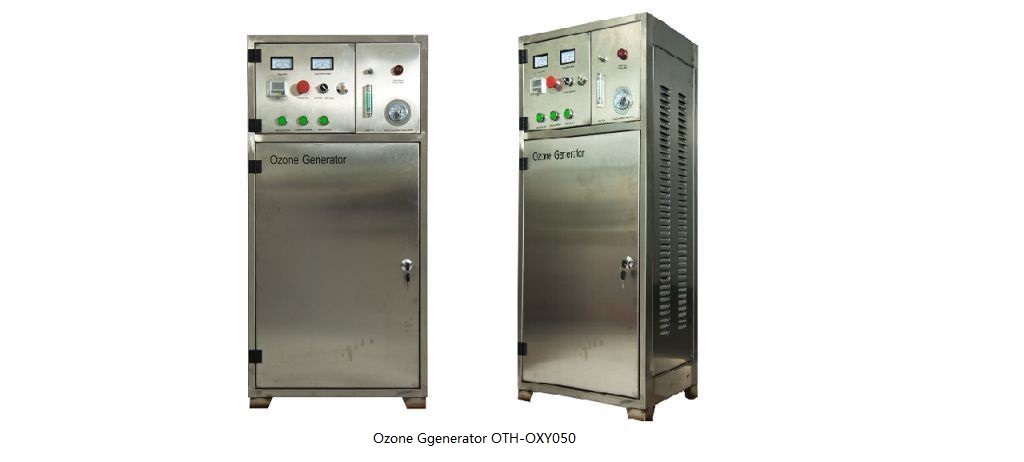

50G/H Ozone Generator Model:OTH-OXY050
Product feature and application scope of OTH-OXY050
Product Feature
1. Compact style; Inbuilt Ozone cell, power supply and PSA oxygen concentrator
2. High ozone concentration 100-145MG/L
3. Both air & water cooling style
4. Safety operation control system combined
Application scope
1. Apply on water purification
Ozone can be used on waste water treatment, agriculture water treatment, aquaculture water treatment, drinking water treatment, swimming pool water treatment, etc.
Ozone generator model OTH-OXY030 mainly used on different kind of industry water treatment (including dual Water,pure water,natural water, swimming pool water, etc.).
The referenced ozone concentration use on water treatment
Category | Dual Water | Pure Water | Natural Water | Tap Water | Swimming Pool |
Ozone dissolved in water | 0.1-0.3mg/L | 0.2-0.4mg/L | 0.4-0.6mg/L | 0.4mg/L | 0.2mg/L |
Ozone dosage | 1-2g/T | 2-3g/T | 3-5g/T | 3-5g/T | 1-2g/T |
2. Apply on air purification
Ozone can be used on different kind of air treatment scenarios for air sterilization, air purification, air deodorizing, gas defense and retain freshness, etc.
Ozone generator model OTH-OXY030 mainly used on industry food processing sterilization, industry plant air purification,Garbage disposal deodorizing, fruit & vegetable freshness keeping, etc.
The referenced ozone concentration use on air treatment
Application | Category | Concentration(PPM) | Ozone output required per hour(mg/H) | Usage Method |
Sterilization | Medical apparatus Disinfection | 20 | 50-100 | Working time: 60minute at 20PPM |
Sickroom, operation room | 2.5-5 | 5.5-15 | Booting ozone gas if necessary. According to the standard to check the total number of bacteria | |
Clothing disinfection | 10-20 | 25-50 | The relative humidity of 90% or so, clothes hangers | |
Gas defense and retain freshness | Egg | 2-2.5 | 5-5.5 | booting 2-3 times a day |
Banana | 2.5-3.5 | 5.5-8 | ||
Chlorophyll less vegetables | 1.5-1 | 3.5-2.5 | ||
Fish, cheese | 0.5-1 | 1.5-2.5 |
Specification:
1. Product name: Ozone Generator
2. Model: OTH-OXY050
3. Ozone output: 50Grams/H; 0-100% adjustable
4. Ozone concentration: 100mg-140mg/L
5. Gas source: PSA Oxygen concentrator
6. Oxygen concentration: >90%
7. Oxygen flow: 0-10 LPM
9. Cooling solution: Both air & Water cooling
10. Cooling water temperature: <30℃
11. Cooling water flow: 6~10L/m
12. Cooling water pressure: <3 bars
13. Ozone module quantity: 1 PCS
14. Material of Cabinet: 304 S. Steel
15. S. Steel cabinet thickness: 1.2MM
16. Net weight: 120KGS
17. Gross weight: 133KGS
18. Units Dimension: 560mm(L)x 450mm(W)×1180(H)mm
19. Packages dimension: 710(L) x 585(W) ×1330(H)
20. Power consumption: 1200W
Certificate:
